Endless Stair becomes Scale Infinite
Endless Stair, an intriguing structure of Escher-like interlocking staircases made from American tulipwood cross-laminated timber (CLT) will be reconfigured for Interni Magazine’s ‘Feeding New Ideas for the City’ exhibition during the FuoriSalone in Milan, Italy. Designed by de Rijke Marsh Morgan Architects (dRMM), engineered by Arup, and built by Imola Legno and Nüssli, Endless Stair was conceived as a three-dimensional exercise in modular timber construction, offering the potential for reconfiguration and adaptation to different contexts. The structure was originally conceived for and facilitated in partnership with the London Design Festival. As their Landmark Project for 2013, Endless Stair was installed in front of one of the UK's most popular cultural destinations, Tate Modern, during last September's Festival. The Ca’ Granda building, one of main venues in the FuoriSalone event, will be the new setting for Scale Infinite – the latest iteration in the life of Endless Stair.

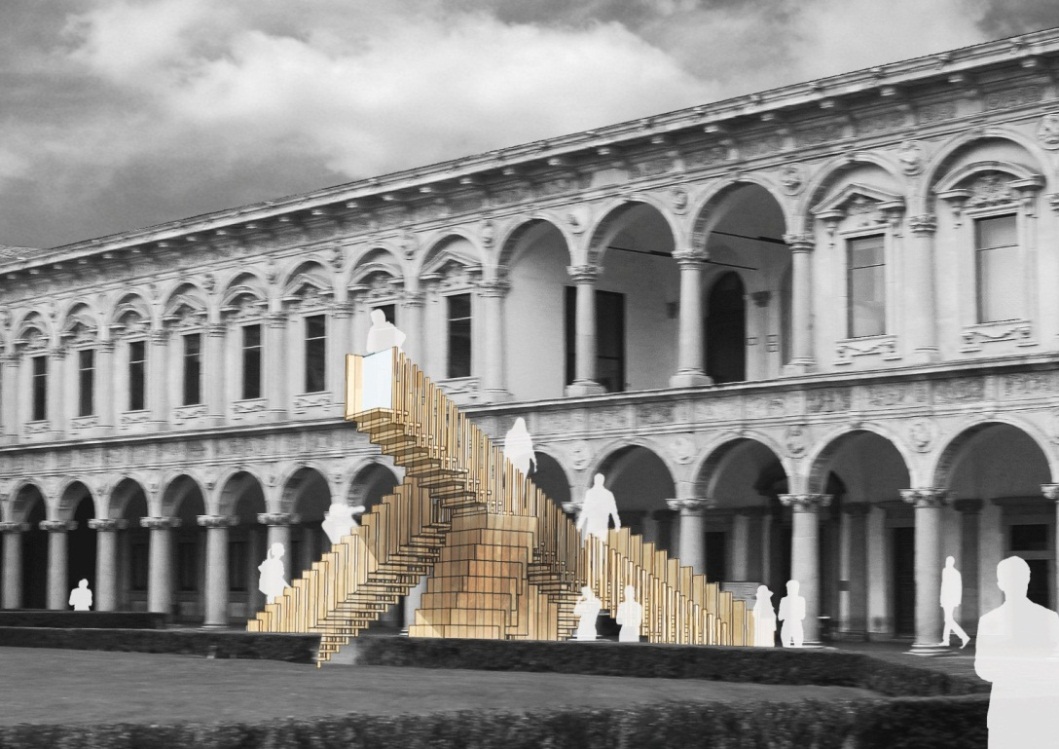

Maintaining the initial influence of Escher, Scale Infinite is a further play on perspective. Six interlocking flights of steps will be joined together to create a visually arresting form which offers a compositional contrast to the classical uniformity of the surrounding Renaissance building.
dRMM again give importance to the element of ‘play’ within the structure, harnessing the possibilities of user interactivity through the integration of different levels, joints, and possible pathways. This game of perspective also gives users the chance to experience the elegant courtyard of the Ca’ Granda from a unique viewpoint.
Scale Infinite is not just an exciting wood sculpture, it is also part of a unique research project that is advancing the knowledge of timber construction and sustainability. This project is the first ever use of hardwood for cross-laminated timber (CLT), which is usually made from softwood. American tulipwood (Liriodendron tulipifera), whose name is derived from its distinctive tulip-
shaped flowers, is an abundant and relatively inexpensive American hardwood. Crucially for this project, it is incredibly strong and stiff for its weight. Testing carried out in Italy last year during the production of the original Endless Stair structure, has shown that tulipwood is up to 3 times stronger in rolling shear than typical construction softwood, such as spruce. Therefore the three ply CLT panels that make up the treads and balustrades only need to be 60mm thick. According to AHEC’s European Director, David Venables, “This project is helping to demonstrate that hardwoods, with their high performance and attractive appearance can add a new dimension to future timber construction. We are really excited about bringing the structure to this important event in Milan and believe it will be a major attraction and talking point.” The latest reincarnation Scale Infinite pushes the design of the CLT elements even further by using performance data gathered from the London installation. Experimenting with the re-arrangement of landings and extending the cantilevering top flight to its limit has lifted the engineering design to a new level.
Scale Infinite is a deliberate contrast in material, scale and composition to its harmonious new backdrop in Milan. It is an aesthetic provocation and, as ever, adds a new dimension to the context in which it stands.
